원래 장소:
메이드 인 차이나
브랜드 이름:
Belparts
모델 번호:
KX161-3 KX161-3S

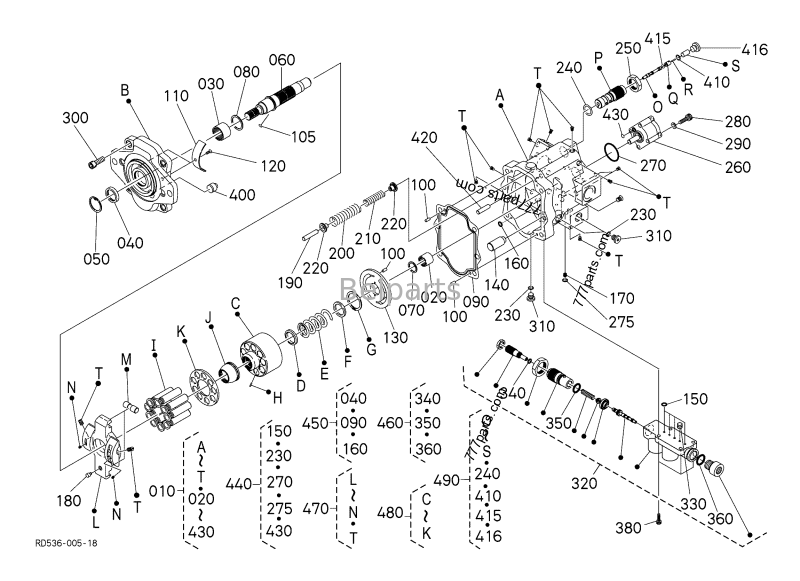

| # | Part No. | Description | Qty |
|---|---|---|---|
| 010 | RD538-61112 | ASSY PUMP,PISTON; Serial No. >=30437; Replacement | 1 |
| 010 | RD538-61111 | ASSY PUMP,PISTON; Serial No. <=30436 | 1 |
| 010 | RD538-61115 | ASSY PUMP,PISTON; Serial No. >=32724; Replacement | 1 |
| 020 | RP801-79080 | BEARING NEEDLE | 1 |
| 030 | RD411-69210 | BEARING NEEDLE | 1 |
| 040 | RP401-79090 | SEAL OIL | 1 |
| 050 | 04611-00420 | SNAP RING INTERNAL | 1 |
| 060 | RD411-69220 | SHAFT | 1 |
| 070 | RD201-69210 | WASHER THRUST | 1 |
| 080 | RD101-69560 | WASHER THRUST | 1 |
| 090 | RD411-69232 | GASKET | 1 |
| 100 | 68493-71450 | PIN STRAIGHT | 3 |
| 105 | 04817-00030 | O RING | 1 |
| 110 | RD411-69242 | BUSH | 2 |
| 120 | RD411-69250 | BOLT | 2 |
| 130 | RD431-69260 | PLATE,VALVE | 1 |
| 140 | RD411-69272 | PIN | 1 |
| 150 | 04817-00080 | O RING | 5 |
| 160 | 04817-00080 | O RING | 1 |
| 170 | RD118-69281 | ORIFICE; Serial No. <=32723 | 1 |
| 170 | RD431-69280 | ORIFICE; Serial No. >=32724; Replacement | 1 |
| 180 | RD411-69290 | STOPPER | 1 |
| 190 | RD118-69310 | PIN | 1 |
| 200 | RD411-69320 | SPRING | 1 |
| 210 | RD431-69330 | SPRING | 1 |
| 220 | RD411-69340 | SEAT SPRING | 2 |
| 230 | 04817-00110 | O RING | 2 |
| 240 | 04817-00210 | O RING; Serial No. <=32723 | 1 |
| 240 | RD431-69450 | O - RING; Serial No. >=32724; Not Interchangeable | 1 |
| 250 | RD411-69350 | NUT | 1 |
| 260 | RD118-69402 | PUMP,GEAR; Serial No. >=32724; Not Interchangeable | 1 |
| 260 | RD118-69401 | PUMP,GEAR; Serial No. <=32723 | 1 |
| 270 | RD118-69380 | O RING | 1 |
| 275 | RD431-69430 | O RING | 1 |
| 280 | 01311-10845 | SCREW,HEX SOC CAP; Serial No. <=32723 | 2 |
| 280 | 01311-10855 | SCREW,HEX SOC CAP; Serial No. >=32724; Not Interchangeable | 2 |
| 290 | 04012-50080 | WASHER SPRING | 2 |
| 300 | 01311-11235 | SCREW,HEX SOC CAP | 6 |
| 310 | 68651-72380 | PLUG | 2 |
| 320 | RD431-69502 | ASSY VALVE | 1 |
| 330 | RD431-69440 | ORIFICE | 1 |
| 340 | 04817-00080 | O RING | 1 |
| 350 | 04817-00160 | O RING | 1 |
| 360 | 04817-00110 | O RING | 1 |
| 380 | 01311-10616 | SCREW,HEX SOC CAP | 4 |
| 400 | RD411-69360 | STOPPER | 1 |
| 410 | 04817-00140 | O RING | 1 |
| 415 | 04817-00080 | O RING | 1 |
| 416 | 68651-72450 | PLUG | 1 |
| 420 | RD411-69372 | PIN | 1 |
| 430 | RD118-69430 | O RING | 1 |
| 440 | RD431-69600 | KIT SEAL,CASE | 1 |
| 450 | RD431-69700 | KIT SEAL | 1 |
| 460 | RD431-69802 | KIT SEAL,VALVE | 1 |
| 470 | RD431-69100 | KIT PLATE SWASH | 1 |
| 480 | RD431-69200 | ASSY CYLINDER | 1 |
| 490 | RD431-69300 | ASSY VALVE; Serial No. <=32723 | 1 |
| 490 | RD431-69302 | ASSY VALVE; Serial No. >=32724; Replacement | 1 |
