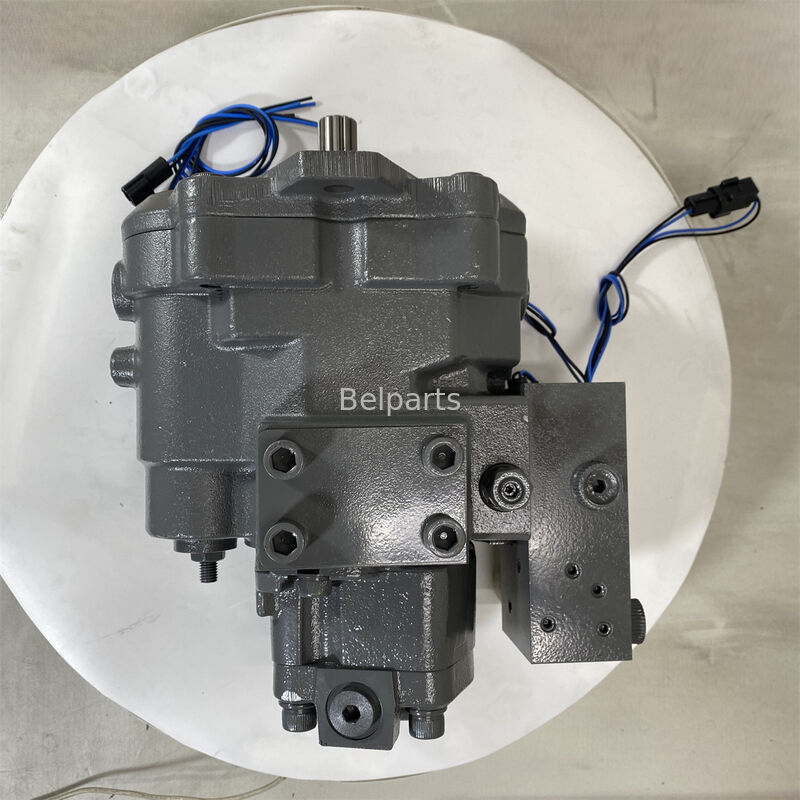

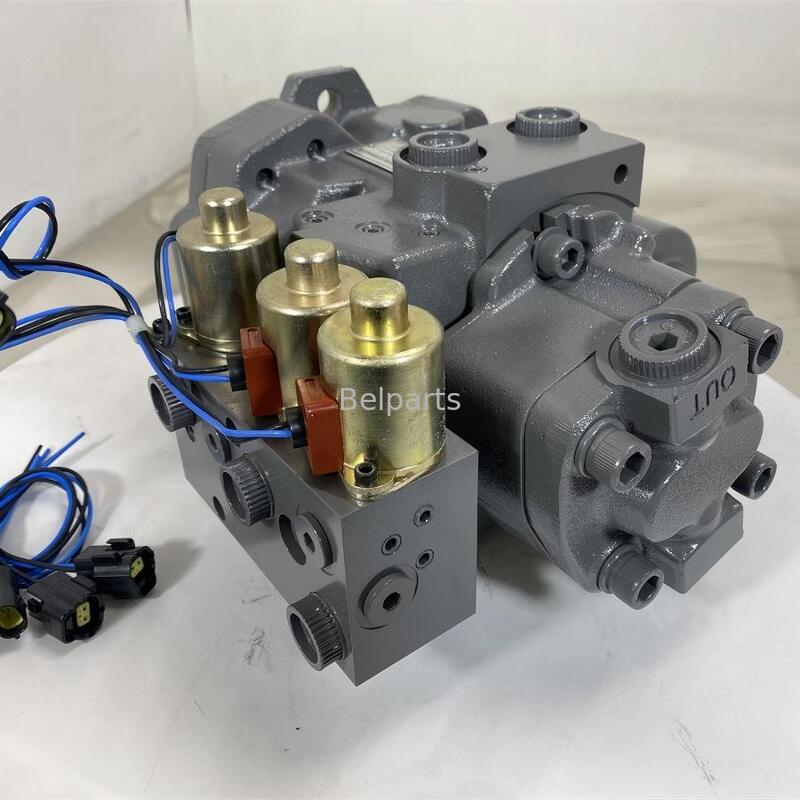

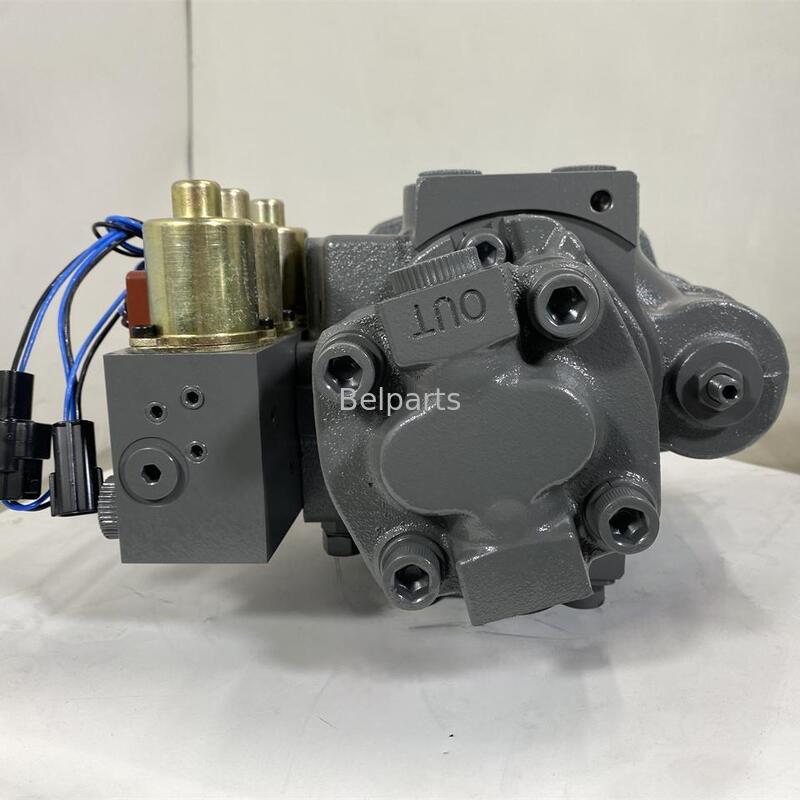

Name: YANMAR VIO50U VIO57U VIO57-6A VIO57-6B Main Hydraulic Pump 172B05-73120 172B05-73100 PSVD2-17E For Mini Excavator Repair Parts
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: VIO50U VIO57U VIO57-6A VIO57-6B
Price: 475.00 USD
Availability: InStock

집 > 상품 > 유압 펌프 굴착기 부속 >

YANMAR VIO50U VIO57U VIO57-6A VIO57-6B Main Hydraulic Pump 172B05-73120 172B05-73100 PSVD2-17E For Mini Excavator Repair Parts

원래 장소:

메이드 인 차이나

브랜드 이름:

Belparts

모델 번호:

VIO50U VIO57U VIO57-6A VIO57-6B

문의하기

조회를 요청하다

YANMAR VIO50U VIO57U VIO57-6A VIO57-6B Main Hydraulic Pump 172B05-73120 172B05-73100 PSVD2-17E For Mini Excavator Repair Parts

제품 세부 정보

애플리케이션:

굴착기

부품명:

유압 펌프

부품 번호:

172B05-73120 172B05-73100

유형:

PSVD2-21E

모델:

VIO50U VIO57U VIO57-6A VIO57-6B

보증:

1년

선적:

해상/항공/특급 DHL FEDEX UPS

품질:

고품질 애프터 마켓

지불 및 배송 조건

최소 주문 수량

1PCS

가격

Negotiated price

포장 세부 사항

나무로 되는 케이스 패킹

배달 시간

1~5일

지불 조건

T/T, 무역 보증, 페이팔, L/C, D/P, D/A, 웨스턴 유니온, MoneyGram

공급 능력

100 PCS/달

YANMAR VIO45 VIO45-5 VIO55-5B VIO55-6A VIO55-6B Main Hydraulic Pump PSVD2-21E B0600-21031 OEM 172961-73102 For Mini Excavator Parts

가장 좋은 가격 을 구하라

발굴기 주 펌프 R55-7 R60 수압 펌프 31M8-10020

가장 좋은 가격 을 구하라

Kubota KX161-3 KX161-3S Main Hydraulic Pump PSVL-54CG-16 B0610-54010 OEM RD538-61112 RD538-61111 RD538-61115 RD411-61113 for Mini Excavator

가장 좋은 가격 을 구하라

유압 펌프 Kubota KX161-3 KX163-5 KX165 KX183-3 미니 굴삭기 부품 KYB PSVL2-27CG-1 B0210-27001 RD411-61113

가장 좋은 가격 을 구하라

문의하기

+86 19924616345

ron@belparts-china.com

86-020-32384870

지금 접촉하세요

제품 설명

172B05-73100 172B05-73120 PSVD2-17E Main Hydraulic Pump for Yanmar VIO50U VIO57U VIO57-6A VIO57-6B Mini Excavator

1. OEM Part Number & Machine Compatibility

Original pump model: KYB PSVD2-17E variable displacement piston pump assembly
Yanmar OEM part numbers: 172B05-73100, 172B05-73120
Fully compatible mini excavator models: Yanmar VIO50U VIO57U VIO57-6A VIO57-6B
The two part numbers feature identical external mounting structure and internal hydraulic configuration, allowing mutual replacement across these machine generations

2. Core Technical Specifications

Structure type: Integrated assembly of dual variable axial piston main pump and built-in pilot charge gear pump
Single pump displacement: 17 cm³/rev, perfectly matched to factory ViPPS hydraulic system design for VIO57 series platform
Rated continuous working pressure: 24.5 MPa; preset maximum relief pressure provides reliable overload protection for the whole hydraulic circuit
Operating rotation speed range is precisely calibrated to match rated speed of the original engine equipped on these compact excavators
Mounting bolt layout, input shaft spline dimension and hydraulic port positioning strictly comply with OEM dimensional standards
Pump housing is constructed from ductile iron; internal pistons, valve plates and friction components use quenched alloy steel to enhance wear resistance and extend total service lifespan

3. Internal Structure & Functional Introduction

Dual main piston pumps generate high-pressure hydraulic oil to actuate boom, arm, bucket, travel and swing operational movements
Integrated pilot gear pump supplies steady pressurized oil for pilot control circuits and system makeup oil replenishment
Built-in power adjustment regulator automatically modulates pump flow output in response to load fluctuations, preventing engine stall during heavy digging operations
Compact integrated layout ensures neat installation inside the limited hydraulic compartment of VIO57 series mini excavators

4. Product Advantages

Exact 1:1 OEM outer casting dimensions, enabling plug-and-play installation with no modifications needed to hydraulic piping or chassis mounting structure
Every finished pump completes comprehensive hydraulic bench inspection covering pressure stability, flow consistency and internal leakage testing before shipment
Complete maintenance spare parts are held in stock, including overhaul seal kits, piston assemblies, swash plates and valve plates for separate component replacement during repair work
Two interchangeable part numbers fit three model versions, streamlining inventory planning for spare part suppliers and repair service workshops

5. Packaging & Global Delivery Details

Input shaft and all hydraulic ports are coated with anti-rust grease and sealed with protective dust plugs
The entire pump is wrapped with moisture-proof plastic film and secured inside export-grade solid wooden crate to prevent collision and moisture damage during long-distance sea or air transportation
In-stock items can be dispatched within 3 to 5 working days after order confirmation
Multiple global shipping solutions are available: international air express, sea LCL/FCL bulk shipment and overland truck transportation for Southeast Asian markets

6. FAQ

Q: Are 172B05-73100 and 172B05-73120 interchangeable with each other? A: Yes, these two part numbers correspond to the same PSVD2-17E pump assembly with matching installation dimensions and internal hydraulic parameters, suitable for cross fitting on all listed Yanmar models.
Q: Can this pump mount directly on VIO50U VIO57U, VIO57-6A and VIO57-6B? A: Yes, unified mounting sizing and factory-calibrated hydraulic settings support direct bolt-on fitting for all three models with no extra adjustment or tuning work.
Q: Are individual repair components offered for this hydraulic pump? A: Corresponding full overhaul seal kits, piston shoe assemblies, valve plates, swash plates and standalone pilot gear pump spare parts are all available for partial overhaul and individual component replacement work.
