Name: Yanmar VIO50-6A VIO50-6B VIO50-2A Main Hydraulic Pump PSVD2-17E 172B04-73100 172B04-73120 172B04-73130 172B04-73110 for Mini Excavator Parts
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: VIO50-6A VIO50-6B VIO50-2A
Price: 475.00 USD
Availability: InStock

집 > 상품 > 유압 펌프 굴착기 부속 >

Yanmar VIO50-6A VIO50-6B VIO50-2A Main Hydraulic Pump PSVD2-17E 172B04-73100 172B04-73120 172B04-73130 172B04-73110 for Mini Excavator Parts

원래 장소:

일본

브랜드 이름:

Belparts

인증:

2006/42/EC ISO9001

모델 번호:

VIO50-6A VIO50-6B VIO50-2A

문의하기

조회를 요청하다

Yanmar VIO50-6A VIO50-6B VIO50-2A Main Hydraulic Pump PSVD2-17E 172B04-73100 172B04-73120 172B04-73130 172B04-73110 for Mini Excavator Parts

제품 세부 정보

부품 번호:

172B04-73100 172B04-73120 172B04-73130 172B04-73110

부품명:

유압 펌프

보증:

1년

모델:

VIO50-6A VIO50-6B VIO50-2A

선적:

해상/항공/특급 DHL FEDEX UPS

애플리케이션:

굴착기

유형:

PSVD2-17E

품질:

애프터 마켓 새로운

지불 및 배송 조건

최소 주문 수량

1PCS

가격

Negotiated price

포장 세부 사항

나무로 되는 케이스 패킹

배달 시간

1~5일

지불 조건

T/T, 무역 보증, 페이팔, L/C, D/P, D/A, 웨스턴 유니온, MoneyGram

공급 능력

100 PCS/달

YANMAR VIO45 VIO45-5 VIO55-5B VIO55-6A VIO55-6B Main Hydraulic Pump PSVD2-21E B0600-21031 OEM 172961-73102 For Mini Excavator Parts

가장 좋은 가격 을 구하라

발굴기 주 펌프 R55-7 R60 수압 펌프 31M8-10020

가장 좋은 가격 을 구하라

Kubota KX161-3 KX161-3S Main Hydraulic Pump PSVL-54CG-16 B0610-54010 OEM RD538-61112 RD538-61111 RD538-61115 RD411-61113 for Mini Excavator

가장 좋은 가격 을 구하라

유압 펌프 Kubota KX161-3 KX163-5 KX165 KX183-3 미니 굴삭기 부품 KYB PSVL2-27CG-1 B0210-27001 RD411-61113

가장 좋은 가격 을 구하라

문의하기

+86 19924616345

ron@belparts-china.com

86-020-32384870

지금 접촉하세요

제품 설명

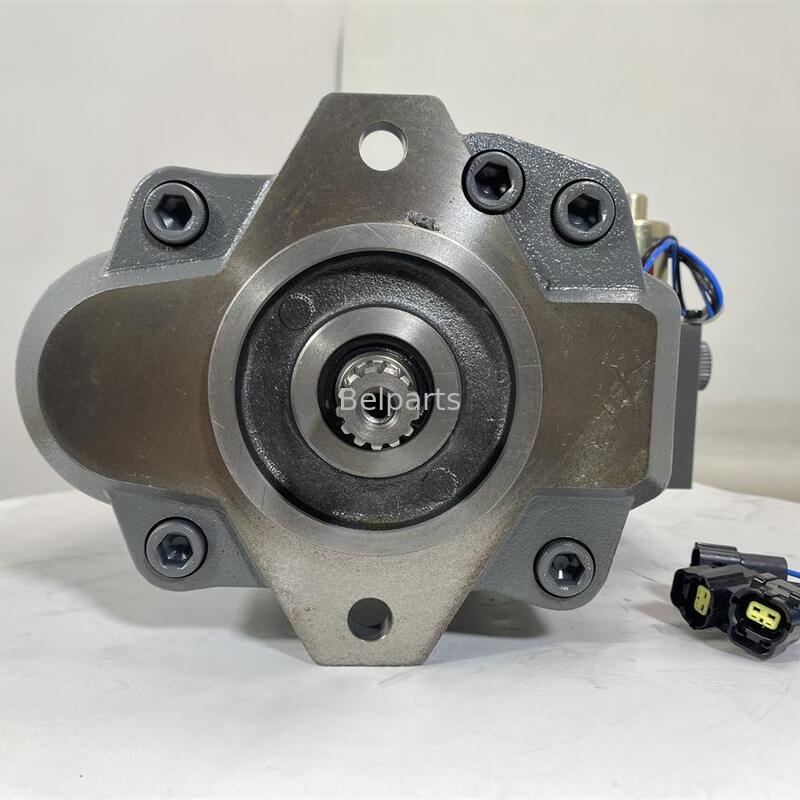

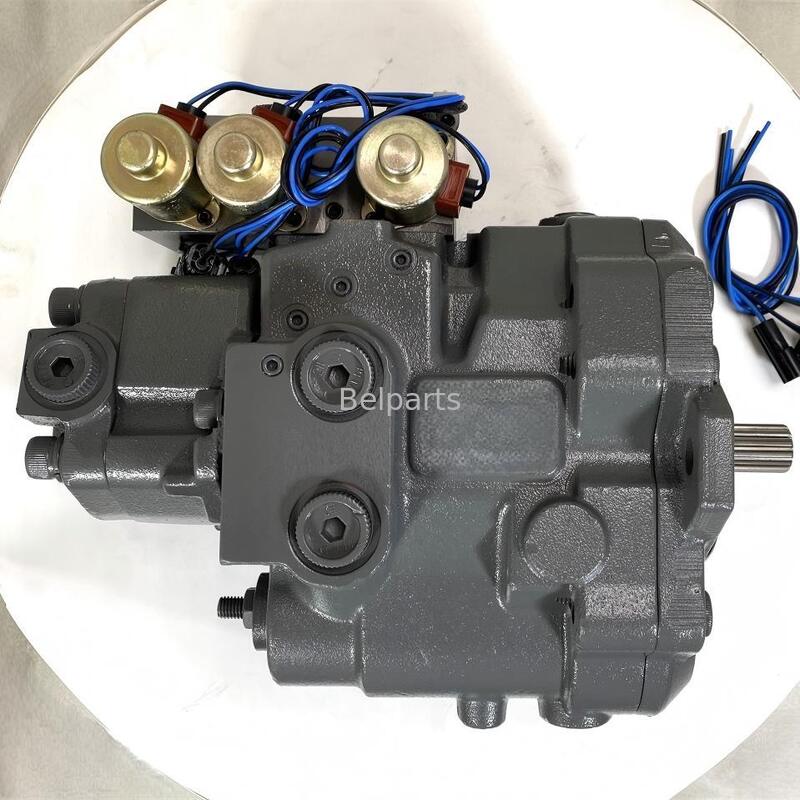

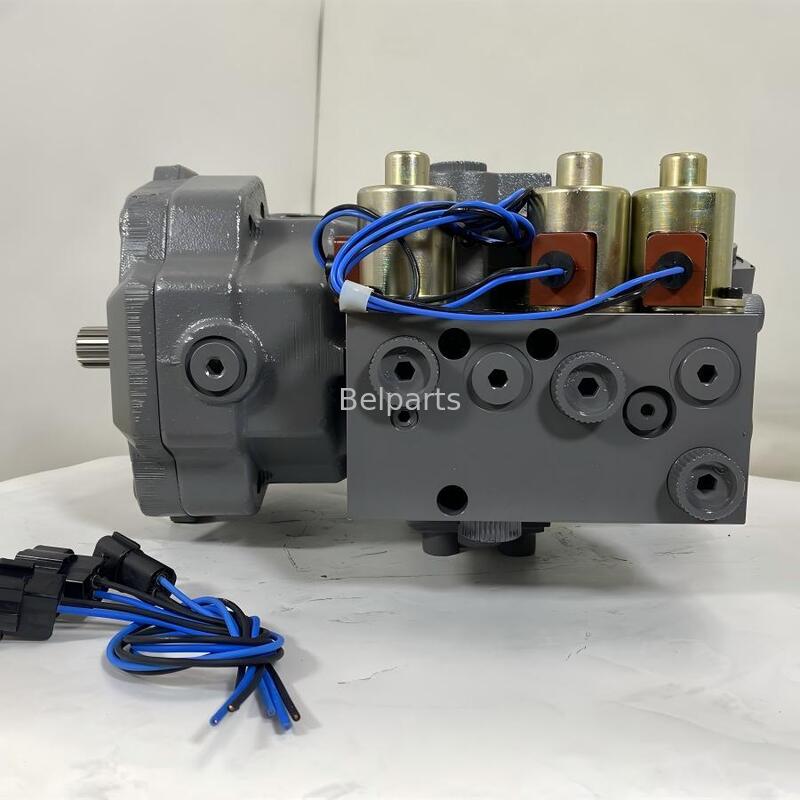

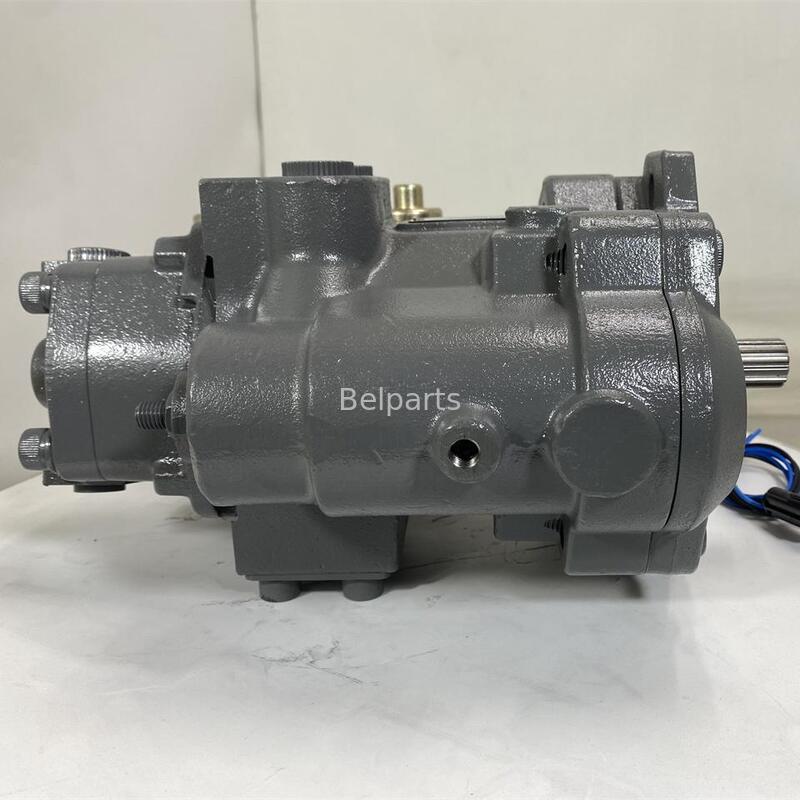

PSVD2-17E 172B04-73100 172B04-73120 172B04-73130 172B04-73110 Main Hydraulic Pump for Yanmar VIO50-6A VIO50-6B VIO50-2A Mini Excavator

1. OEM Part Number & Machine Compatibility

Original pump model: KYB PSVD2-17E variable displacement axial piston pump assembly
Yanmar OEM part numbers: 172B04-73100, 172B04-73120, 172B04-73130 172B04-73110
Fully compatible mini excavator models: Yanmar VIO50-6A, VIO50-6B, VIO50-2A
All three listed part numbers share identical external mounting dimensions and internal hydraulic configuration, supporting mutual cross replacement for these machine models

2. Core Technical Specifications

Structure type: Integrated unit of variable main piston pump and built-in pilot charge gear pump
Main pump displacement: 17 cm³/rev, matched to original ViPPS hydraulic system design of VIO50 series excavator platform
Rated continuous working pressure: 24.5 MPa; preset maximum relief pressure provides reliable overload protection for the whole hydraulic system
Operating rotation speed range precisely calibrated to match rated speed of original engine equipped on these compact excavators
Mounting bolt layout, input shaft spline size and hydraulic port orientation strictly comply with OEM dimensional drawings
Pump housing adopts ductile iron material; internal pistons, valve plates and friction components use quenched alloy steel to improve wear resistance and extend service lifespan

3. Internal Structure & Functional Introduction

Main piston pump outputs high-pressure hydraulic oil to drive boom, arm, bucket, travel and swing working movements
Integrated pilot gear pump supplies stable pressurized oil for pilot control circuits and system hydraulic oil replenishment
Built-in power adjustment regulator automatically modulates pump flow output responding to load changes, preventing engine stall during heavy digging operations
Compact integrated layout fits neatly inside the limited hydraulic compartment of VIO50 series mini excavators

4. Product Advantages

Exact 1:1 OEM outer casting dimensions, enabling plug-and-play installation with no modification to hydraulic pipelines or chassis mounting structure
Every finished pump undergoes comprehensive hydraulic bench inspection covering pressure stability, flow consistency and internal leakage testing before shipment
Complete maintenance spare parts are held in stock, including overhaul seal kits, piston assemblies, swash plates and valve plates for separate component replacement during repair work
Three interchangeable part numbers fit three machine variants, simplifying inventory planning for spare part suppliers and repair service workshops

5. Packaging & Global Delivery Details

Input shaft and all hydraulic ports are coated with anti-rust grease and sealed with protective dust plugs
The entire pump is wrapped with moisture-proof plastic film and secured inside export-grade solid wooden crate to prevent collision and moisture damage during long-distance sea or air transportation
In-stock items can be dispatched within 3 to 5 working days after order confirmation
Multiple global shipping solutions are available: international air express, sea LCL/FCL bulk shipment and overland truck transportation for Southeast Asian markets

6. FAQ

Q: Are 172B04-73100, 172B04-73120 and 172B04-73130 interchangeable?

A: Yes, all three part numbers correspond to the same PSVD2-17E pump assembly with matching installation dimensions and internal hydraulic parameters, suitable for cross fitting on VIO50-6A, VIO50-6B and VIO50-2A directly.
Q: Can this pump install directly on all three listed Yanmar models?

A: Yes, unified mounting sizing and factory-calibrated hydraulic settings support direct bolt-on fitting for VIO50-6A, VIO50-6B and VIO50-2A with no extra adjustment required.
Q: Are individual repair spare parts available for this hydraulic pump?

A: Corresponding full overhaul seal kits, piston shoe assemblies, valve plates, swash plates and standalone pilot gear pump spare parts are all available for partial overhaul and individual component replacement work.
