원래 장소:
중국
브랜드 이름:
Belparts
인증:
CE
모델 번호:
U25S U25-3S U25
| Application | Excavator |

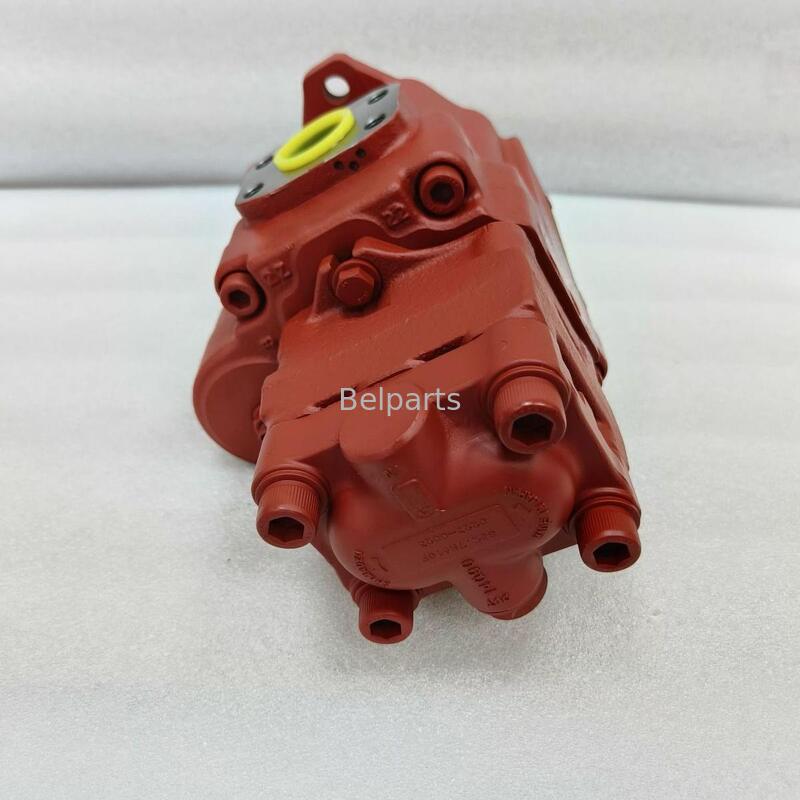

| Part Name | Hydraulic Main Pump |
| Machine Model | KUBOTA U25S U25-3S U25 |
| Type | PVD-1B-29BP-12G5-4614F |
| Part Number | RB511-61114 RB511-61112 |
| Warranty | 12 Months |
| Delivery Time | 3-7 Days |
| Shipment | Express, Freight, Sea, Train |
| Quality | Original Brand New |
| MOQ | 1 Piece |
| Payment Terms | T/T, Trade Assurance, PayPal, etc. |
| # | Part No. | Description | Qty |
|---|---|---|---|
| 010 | RB511-61114 | ASSY PUMP,PISTON; Serial No. >=30837; Replacement | 1 |
| 010 | RB511-61112 | ASSY PUMP,PISTON; Serial No. <=30836 | 1 |
| 020 | RB401-69160 | SHAFT | 1 |
| 030 | RB411-69070 | CYLINDER,ASSY(BARREL) | 1 |
| 050 | RB411-69090 | PLATE,VALVE | 1 |
| 060 | RB401-69080 | ASSY PISTON | 10 |
| 070 | RB401-69210 | HOLDER | 1 |
| 090 | RB401-69180 | PIN | 3 |
| 100 | RB401-69150 | SPRING | 1 |
| 110 | RB401-69230 | RETAINER | 2 |
| 120 | 04611-00340 | CIR-CLIP,INTERNAL | 1 |
| 130 | RA211-90250 | PLATE | 1 |
| 140 | RB401-69030 | PIN | 2 |
| 150 | RB411-69010 | SPRING | 1 |
| 160 | RB411-69020 | HOLDER,SPRING | 1 |
| 170 | RB411-69030 | GUIDE,SPRING | 1 |
| 180 | RB401-69310 | PIN | 1 |
| 190 | RB511-69040 | ROD | 1 |
| 195 | RB511-68990 | WASHER | 1 |
| 200 | RB511-69050 | PIN | 1 |
| 210 | RB511-69062 | PIN | 1 |
| 220 | RB401-69100 | PIN | 1 |
| 230 | RB401-69010 | BEARING,BALL | 1 |
| 240 | RB401-69340 | SPRING,PLATE | 4 |
| 250 | RB401-69040 | COUPLING | 1 |
| 260 | RB401-69190 | COLLAR | 1 |
| 270 | RB401-69430 | WASHER,PLAIN | 2 |
| 280 | RB401-69400 | KIT SEAL | 1 |
| 290 | RB401-69220 | GASKET | 1 |
| 300 | RB401-69350 | SEAL,OIL | 1 |
| 310 | 04817-00110 | O RING | 1 |
| 320 | 04817-00120 | O RING | 2 |
| 330 | 04817-00110 | O RING | 1 |
| 340 | RB401-69390 | WASHER SEAL | 1 |
| 350 | 04810-50550 | O RING | 1 |
| 360 | 04817-00080 | O RING | 1 |
| 370 | 04817-00070 | O RING | 1 |
| 380 | RB511-69083 | PUMP,GEAR; Serial No. >=30837; Replacement | 1 |
| 380 | RB511-69080 | PUMP,GEAR; Serial No. <=30836 | 1 |
| 390 | 04611-00520 | CIR-CLIP INTERNAL | 1 |
| 400 | 04612-00250 | CIR-CLIP EXTERNAL | 1 |
| 410 | RB401-69260 | PLUG | 1 |
| 420 | RC401-69150 | BOLT,HEX-SOC-HD | 4 |
| 430 | RC401-69190 | PLUG | 5 |
| 440 | RB401-69260 | PLUG | 1 |
| 450 | 05411-00616 | PIN SPRING | 1 |
| 460 | RB401-69370 | SCREW,SET | 1 |
| 470 | RC401-69290 | NUT,LOCK | 1 |
| 480 | RB401-69360 | BOLT | 2 |
| 490 | RB238-69420 | KIT SEAL | 1 |
| 500 | 04816-00060 | O RING | 1 |
