원래 장소:
중국
브랜드 이름:
Belparts
인증:
CE
모델 번호:
PC1800-6
| Application | Excavator |
|---|---|

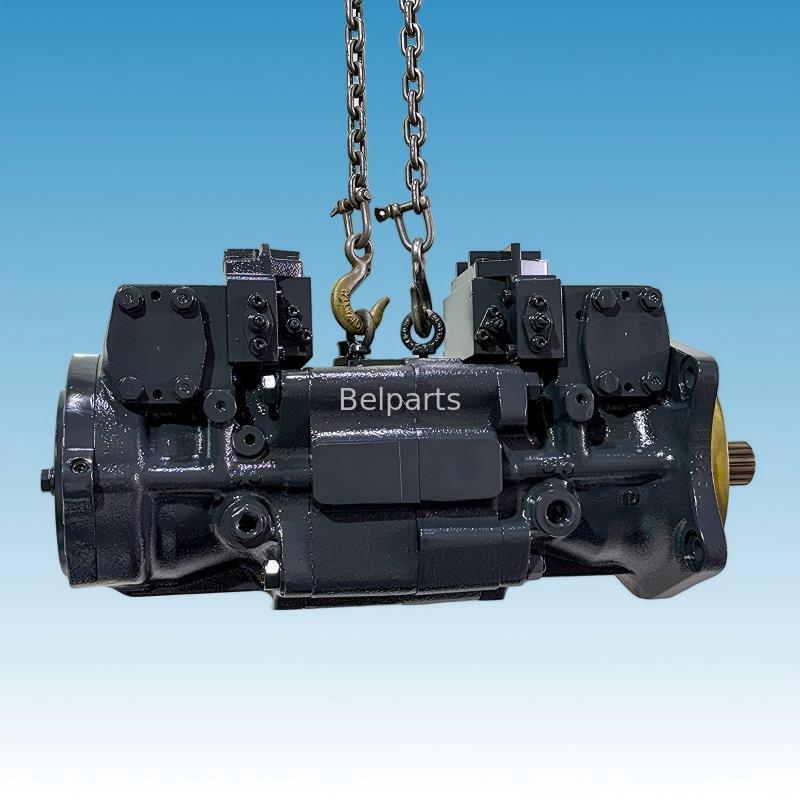

| Part name | Hydraulic Main pump |
| Machine model | PC1800-6 |
| Part number | 708-2L-00540 708-2L-04770 708-1H-00320 708-1H-01320 708-27-00240 708-2L-00810 708-2L-01550 |
| Engine | SAA6D140E-2D-8 SAA6D140E-2E-8 SAA6D140E-3C-8 SAA6D140E-3D-8 |
| Warranty | 6 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Original Brand Rebuild Refurbishied |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and et |
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 1 | (708-1H-00320) | PUMP ASS'Y,(SEE FIG. Y1600-41A0) | 1 |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-41A0 T0 Y1600-50A0 | |||
| 1 | (708-1H-01320) | PUMP SUB ASS'Y | 1 |
| 1 | (*708-2H-04150) | BLOCK ASS'Y,REAR | 1 |
| 1 | BLOCK,CYLINDER | 1 | |
| 2 | PLATE,VALVE | 1 | |
| 3 | (*708-18-13230) | Pin | 1 |
| 4 | (*04065-05820) | RING,SNAP | 1 |
| 5 | (*708-2H-23130) | SEAT | 1 |
| 6 | (*708-2H-23151) | Spring | 1 |
| 7 | (*708-2H-23141) | SEAT | 1 |
| 8 | (*708-2H-23350) | GUIDE,RETAINER | 1 |
| 9 | (*708-2H-23360) | Pin | 3 |
| 10 | (*708-2H-23340) | RETAINER,SHOE | 1 |
| 11 | (*708-2H-23311) | PISTON SUB ASS'Y | 9 |
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 1 | (708-2L-00550) | PUMP ASS'Y,(SEE FIG. Y1600-01A0) | 1 |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-15A0 | |||
| 1 | (708-2L-01550) | PUMP SUB ASS'Y | 1 |
| 1 | (*708-2L-22411) | SHAFT,FRONT | 1 |
| 2 | (*708-2L-32150) | Bearing | 1 |
| 3 | (*708-2E-05040) | WASHER KIT | 1 |
| 3 | WASHER? 3.1MM | 1 | |
| 3 | WASHER? 3.0MM | 1 | |
| 3 | WASHER? 2.9MM | 1 | |
| 3 | WASHER? 2.8MM | 1 | |
| 4 | (*708-25-12790) | RING, SNAP | 1 |
| 5 | 708-25-52861 | SEAL, OIL | 1 |
| 6 | (*708-25-12812) | Housing | 1 |
| 7 | 07000-A2080 | O-ring | 1 |
| 8 | (*708-25-05130) | SHIM KIT | 1 |
| 8 | SHIM? 0.2MM | 2 | |
| 8 | SHIM? 0.1MM | 1 | |
| 9 | 01010-80820 | BOLT, WIRING HARNESS MOUNTING BRACKET | 4 |
| 10 | 01643-30823 | WASHER, WIRING HARNESS MOUNTING BRACKET | 4 |
| 11 | (*708-2L-04141) | CYLINDER BLOCK, ASSY | 1 |
| 11 | BLOCK,CYLINDER | 1 | |
| 12 | PLATE,VALVE | 1 | |
| 13 | (*720-68-19610) | PIN,DOWEL | 1 |
| 14 | (*04065-04818) | RING,SNAP | 1 |
| 15 | (*708-2L-23131) | SEAT | 1 |
| 16 | (*708-2L-33160) | Spring | 1 |
| 17 | (*708-7L-13140) | SEAT | 1 |
| 18 | (*708-2L-23351) | GUIDE,RETAINER | 1 |
| 19 | (*708-2L-23360) | Pin | 3 |
| 20 | (*708-2L-33340) | RETAINER PLATE | 1 |
| 21 | (*708-2L-33310) | PISTON SUB ASS'Y | 9 |
