Name: EX270 EX270LC EX300 EX300LC EX300H EX300LCH Main Hydraulic Pump For HITACHI Excavator Spare Parts 9075749 9075752 HPV145CW Piston Pump
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: EX270 EX270LC EX300 EX300LC EX300H EX300LCH
Price: 475.00 USD
Availability: InStock

집 > 상품 > 유압 펌프 굴착기 부속 >

EX270 EX270LC EX300 EX300LC EX300H EX300LCH Main Hydraulic Pump For HITACHI Excavator Spare Parts 9075749 9075752 HPV145CW Piston Pump

HITACHI Excavator Piston Pump

Hydraulic Piston Pump 9075749

Hydraulic Piston Pump 9075752

원래 장소:

중국

브랜드 이름:

Belparts

인증:

모델 번호:

EX270 EX270LC EX300 EX300LC EX300H EX300LCH

문의하기

조회를 요청하다

EX270 EX270LC EX300 EX300LC EX300H EX300LCH Main Hydraulic Pump For HITACHI Excavator Spare Parts 9075749 9075752 HPV145CW Piston Pump

제품 세부 정보

부품명:

수압 피스톤 펌프

애플리케이션:

굴삭기 굴착기

부품 번호:

9075749 9075752

품질:

중국산 고품질

보증:

12개월

선적:

해상/항공/특급 DHL FEDEX UPS

지불 및 배송 조건

최소 주문 수량

1개

가격

협상 가능

포장 세부 사항

나무 케이스 포장

배달 시간

3~7일

지불 조건

L/C,D/A,D/P,T/T,Alibaba 무역 보증,웨스턴 유니온,PAYPAL

공급 능력

100 PCS/달

굴삭기 pc300-6 코마츠 유압펌프 708-2H-00110 주펌프

가장 좋은 가격 을 구하라

화면

YA00003081 4455484 4424246 크롤러 발굴기 부품 히타치용 수압 펌프 EX2500-6 EX5500

가장 좋은 가격 을 구하라

PC70-8 코마쓰 발굴기 원본 예비 부품의 수압 주 펌프 708-3T-00151 주 수압 펌프

가장 좋은 가격 을 구하라

화면

발굴기 주 펌프 PC75UU-3 PC78US-5 수압 주 펌프 708-1W-00241

가장 좋은 가격 을 구하라

문의하기

+86 18520556972

belparts01@gmail.com

86-020-32384870

지금 접촉하세요

제품 설명

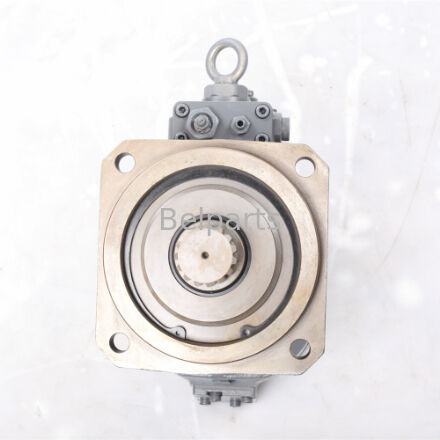

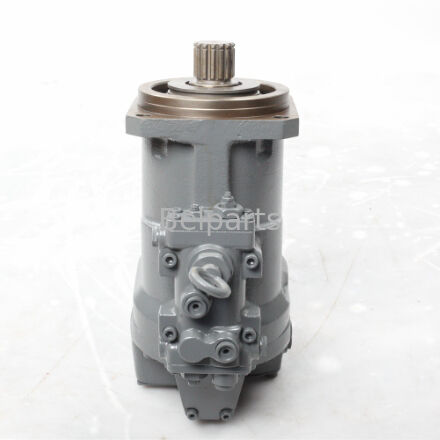

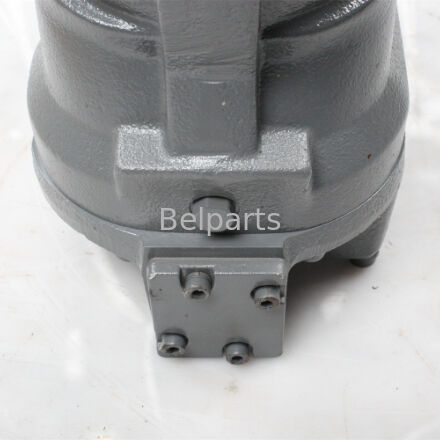

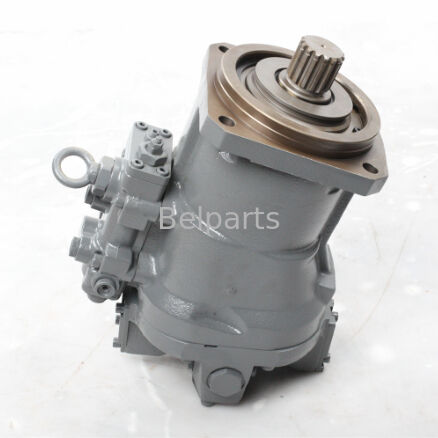

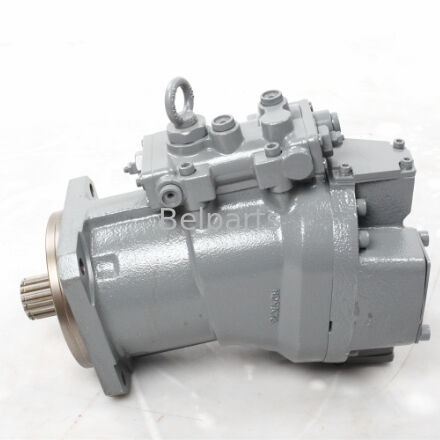

EX270 EX270LC EX300 EX300LC EX300H EX300LCH Main Hydraulic Pump For HITACHI Excavator Spare Parts 9075749 9075752 HPV145CW Piston Pump

Product Specifications

Application	Excavator
Part name	Hydraulic Piston pump
Model	EX270 EX270LC EX300 EX300LC EX300H EX300LCH
Part munber	9075749 9075752
Type	HPV145CW
Warranty	12 months
Delivery time	3-7 Days
Shipment	Express/freight/sea/train
Quality	Original brand new
MOQ	1 Piece
Payment term	T/T, Trade Assurance, Paypal and etc
Category	Construction Machinery Part

List of spare parts

#	Part No	Part Name	Qty.
	9075749	PUMP; SINGLE	1
01	1010399	. CASING; PUMP	1
01	1010399	. CASING; PUMP
01	1014184	. CASING; PUMP	1
02	8046112	. PACKING	1
04	2023051	. DISC; DRIVING	1
06	4190694	. BRG.; ROL.	1
07	4209323	. BRG.; ROL.	1
08	3035965	. SPACER	1
09	4191665	. NUT; BRG.	1
12	8033955	. PISTON	7
12	8049118	. PISTON	7
14	2022744	. ROTOR	1
16	8035539	. SHAFT; CENTER	1
17	4184779	. BALL	1
18	4191667	. RING; RETAINING	1
19	4194362	. SPRING; COMPRES.	1
20	4193062	. RING; RETAINING	1
21	4198956	. PIN	1
22	4191666	. SEAL; OIL	1
22	4232070	. SEAL; OIL	1
23	3035966	. COVER; SEAL	1
24	4191664	. O-RING	1
25	4094325	. RING; RETAINING	1
29	4193132	. BUSHING	1
31	3039569	. LINK	1
32	9724756	. LEVER	2
34	4179179	. PIN	2
35	4179177	. PIN	2
36	4200227	. PIN	1
37	4179176	. PIN	1
38	4146370	. RING; RETAINING	6
40	8041179	. HEAD ASS'Y	1
40	8041179	. HEAD ASS'Y
40	8041517	. HEAD ASS'Y	1
40	8041517	. HEAD ASS'Y
40A		.. VALVE	1
40B		.. HEAD	1
40		. HEAD ASS'Y	1
40A	2035307	.. VALVE	1
40B	1011957	.. HEAD	1
41	3036326	. PISTON; SERVO	1
42	4193245	. PIN	1
43	4179838	. SCREW; SET	1
46	4099290	. PIN; SPRING	2
48	4180349	. O-RING	10
49	M341245	. BOLT; SOCKET	8
50	495841	. WASHER; SPRING	8
51	4108720	. PLUG	2
51	4108720	. PLUG	1
51A	957366	.. O-RING	1
52	4204862	. STOPPER	1
53	955020	. O-RING	1
59	984623	. O-RING	1
63	M340820	. BOLT; SOCKET	8
64	4514388	. WASHER; SPRING	8
65	4216295	. STOPPER	1
66	9075750	. REGULATOR	1
69	A810055	. O-RING	1
70	4515041	. PIN; SPRING	2
73	4092534	. PLUG	1
73	9089486	. PLUG	1
73A	4509180	.. O-RING	1
75	3039520	. NAME-PLATE	1
76	M492564	. SCREW; DRIVE	2

More Branded Accessories are Available

Hydraulic Parts Hydraulic Pump Final Drive Travel Reduction Swing Motor Swing Reduction Control Valve Gear Parts Slew Bearing Engine Assembly Hydraulic Cylinder ECU

Why Choose Us?

Quality Assurance
Fine Workmanship
Price Advantage
Stable Supply

Process Features

Standard production management
Advanced testing equipment
Heat Treatment Technology
Fitting of cylinder block and valve plate

About Factory

Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.

FAQ

If I only know the excavator model, but can not offer parts No., what should I do?

If possible, you can send us pictures of old products, nameplate or the size for reference.

What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?

The warranty is 6/12 Months based on the item details.

How can I pay the order?

We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.

When will get the items after I place order?

Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.

How can I do if there is something wrong with the items?

First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.

What is your main products?

We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
