원래 장소:
중국
브랜드 이름:
Belparts
인증:
CE
모델 번호:
EC700B EC700BHR

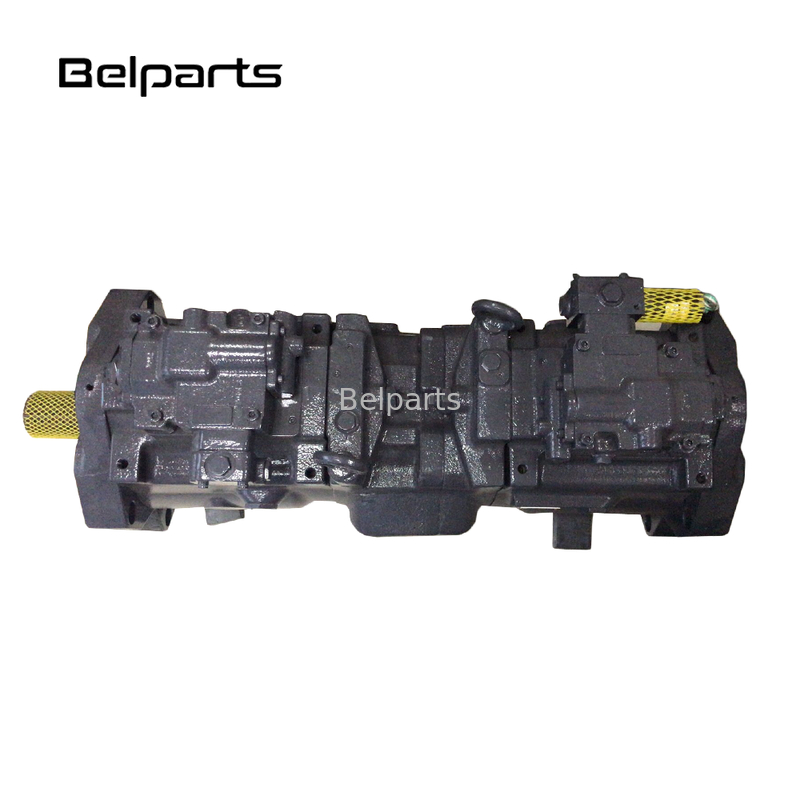

EC700B EC700BHR Main Hydraulic Pump for VOLVO Excavator Parts K3V280DTH-1CDR-9N0Y VOE14621492 VOE14522561 VOE14656476 Axial Piston Pump 14621492 14522561 14656476
|
Application
|
Excavator
|
|
Part name
|
Main Hydraulic Pump
|
|
Type
|
K3V280DTH-1CDR-9N0Y
|
|
Model
|
EC700B EC700BHR
|
|
Parts number
|
VOE14621492 VOE14522561 VOE14656476
|
|
Warranty
|
12 months
|
|
Delivery time
|
3-7 Days
|
|
Shipment
|
Express/freight/sea/train
|
|
Quality
|
Original Brand New
|
|
MOQ
|
1 Piece
|
|
Payment term
|
T/T, Trade Assurance, Paypal and et
|
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 8279230 | |||
| VOE 14522561 | Pump | 1 | |
| 1 | VOE 14535198 | Piston | 1 |
| 2 | VOE 14535158 | Piston | 18 |
| 3 | VOE 14531598 | Case more | 18 |
| 4 | VOE 14531599 | Guard | 1 |
| 5 | VOE 14535157 | Cylinder Block | 1 |
| 6 | VOE 14535173 | Plate | 1 |
| 7 | VOE 14535200 | Cylinder | 1 |
| 8 | VOE 14535157 | Cylinder Block | 1 |
| 9 | VOE 14535174 | Plate | 1 |
| 10 | VOE 14535201 | Plate | 2 |
| 11 | VOE 14535164 | Plate | 2 |
| 12 | VOE 14535165 | Bushing | 2 |
| 13 | SA 8230-32080 | Valve more | 1 |
| 14 | VOE 14535150 | Shaft | 1 |
| 15 | VOE 14535151 | Shaft | 1 |
| 16 | VOE 14535152 | Coupling | 1 |
| 17 | VOE 14535153 | Bearing | 2 |
| 18 | VOE 14535154 | Bearing | 2 |
| 19 | VOE 14535155 | Spacer | 4 |
| 20 | VOE 14535156 | Booster | 1 |
| 21 | VOE 14535160 | Plate | 3 |
| 22 | VOE 14535161 | Bushing | 2 |
| 23 | VOE 14535162 | Spring | 18 |
| 24 | VOE 14535169 | Cover | 1 |
| 25 | VOE 14535163 | Plate | 2 |
| 26 | VOE 14535166 | Support | 2 |
| 27 | VOE 14535168 | Cover | 1 |
| 28 | VOE 14535170 | Casing | 2 |
| 29 | VOE 14535171 | Cover | 1 |
| 30 | VOE 14535172 | Cover | 1 |
| 31 | VOE 14535175 | Screw | 4 |
| 32 | VOE 14535176 | Screw | 4 |
| 33 | SA 9016-10804 | Bolt more | 8 |
| 34 | SA 9415-11021 | Plug more | 4 |
| 35 | SA 9415-11051 | Plug more | 4 |
| 36 | SA 7242-11040 | Plug more | 31 |
| 37 | VOE 14512382 | Plug | 5 |
| 38 | VOE 14535202 | Pin | 2 |
| 39 | VOE 14535180 | Pin | 2 |
| 40 | VOE 14535184 | Pin | 2 |
| 41 | VOE 14535181 | Piston | 2 |
| 42 | VOE 14535182 | Plug | 2 |
| 43 | VOE 14535183 | Plug | 2 |
| 44 | VOE 14535185 | O-ring | 2 |
| 45 | VOE 14535186 | O-ring | 1 |
| 46 | VOE 14535187 | O-ring | 2 |
| 47 | VOE 14535188 | O-ring | 2 |
| 48 | VOE 14535189 | O-ring | 1 |
| 49 | VOE 14534030 | O-ring more | 15 |
| 50 | VOE 14534029 | O-ring more | 10 |
| 51 | VOE 14535387 | O-ring more | 4 |
| 52 | VOE 14534049 | O-ring more | 2 |
| 53 | VOE 14535190 | Seal | 1 |
| 54 | VOE 14535191 | Ring | 2 |
| 55 | VOE 14535192 | Ring | 2 |
| 56 | SA 9111-12000 | Nut more | 4 |
| 57 | SA 9541-01055 | Ring | 2 |
| 58 | VOE 979022 | Nut more | 2 |
| 59 | VOE 14535193 | Pin | 5 |
| 60 | VOE 14535194 | Bolt | 2 |
| 61 | VOE 14535195 | Screw | 2 |
| 62 | VOE 14535196 | Screw | 2 |
| 63 | VOE 14535167 | Washer | 8 |
| 64 | VOE 14535178 | Screw | 4 |
| 65 | VOE 14535177 | Screw | 4 |
| 66 | VOE 14535197 | Screw | 8 |
| 67 | VOE 14535179 | Plate | 4 |
| 100 | VOE 14535209 | Seal | 1 |
More Branded Accessories are Available
| Hydraulic Parts | Hydraulic Pump | Final Drive | Travel Reduction |
| Swing Motor | Swing Reduction | Control Valve | Gear Parts |
| Slew Bearing | Engine Assembly | Hydraulic Cylinder | ECU |
Why Choose Us?
Process Features
About Factory
FAQ
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us
and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6.What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,
hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
