원래 장소:
중국에서 만들어졌습니다
브랜드 이름:
Belparts
모델 번호:
HMGE36EA ZX200 ZX200-1 ZX200-3
| Model | HMGE36EA ZX200 ZX200-1 ZX200-3 |
|---|---|

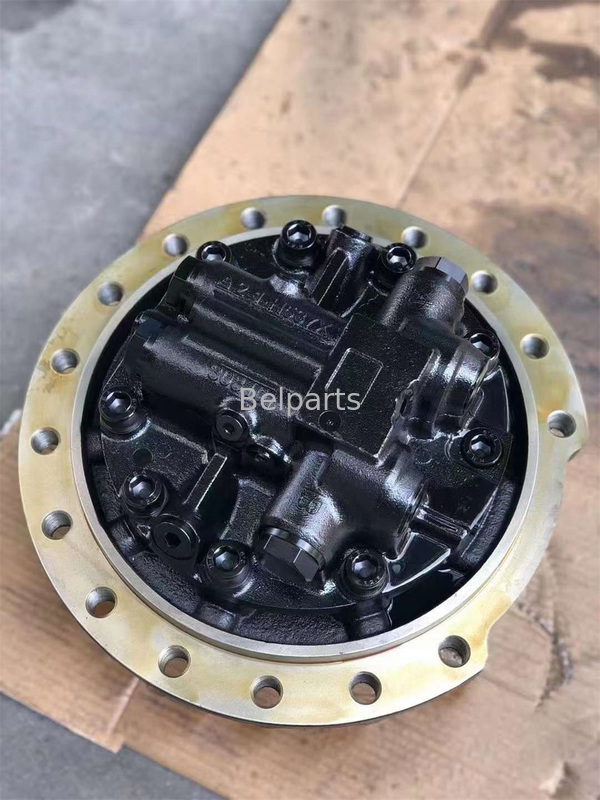

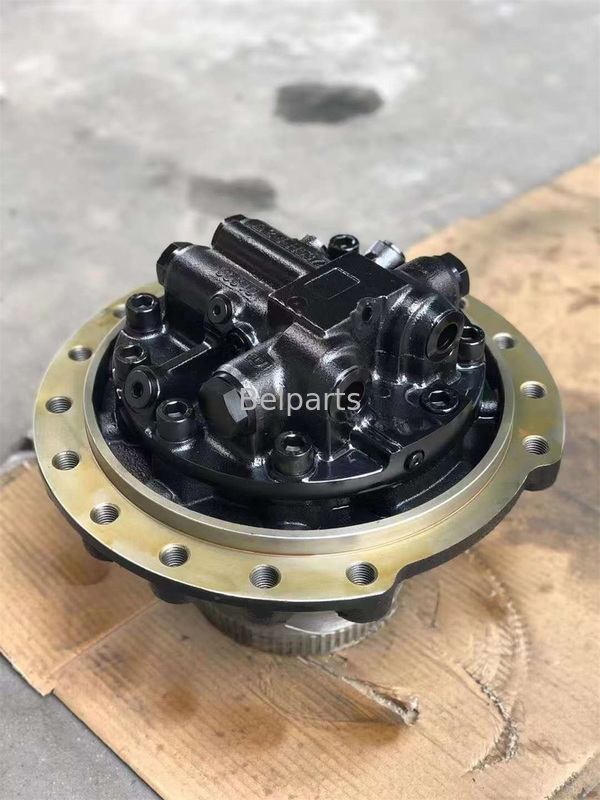

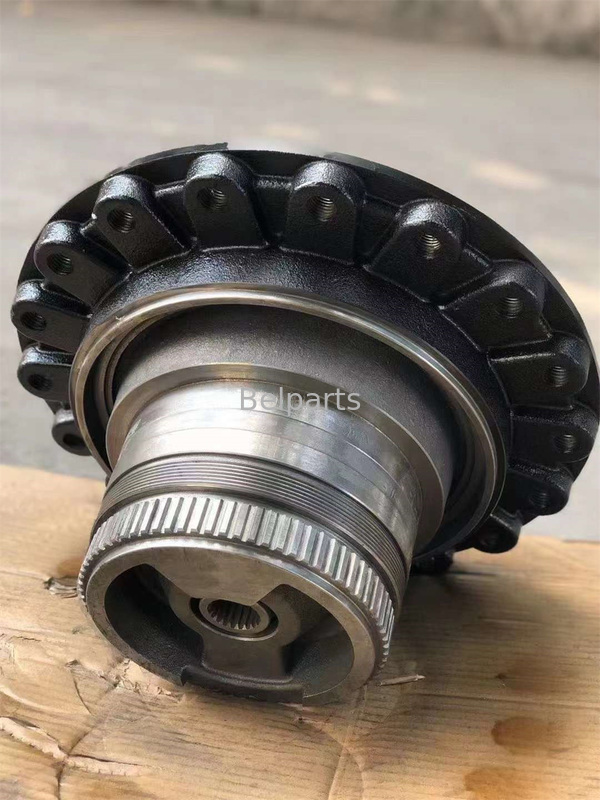

| Part Name | Excavator Travel Motor |
| Part Number | 9234034 9237802 |
| Place of Origin | Other Country |
| Condition | Original |
| Warranty | 12 months |
| MOQ | 1 pcs |
| Production Capacity | 1000pcs /Month |
| Standard or Nonstandard | Standard |
| Payment Term | L/C, T/T, Trade Assurance |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9234034 | MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | ||
| 9237802 | MOTOR; OIL (FOR TRANSPORTATION) | 1 | ||
| 00 | 1031123 | . HOUSING | 1 | |
| 01 | 4613831 | . SEAL; OIL | 1 | |
| 03 | 4601724 | . PISTON | 1 | |
| 07 | 2049166 | . SHAFT | 1 | |
| 08 | 959499 | . RING; RETAINING | 1 | |
| 09 | 4600108 | . PIN | 2 | |
| 10 | 4600133 | . BRG.; ROL. | 1 | |
| 15 | 8075190 | . PISTON ASS'Y | 9 | |
| 15 | 8099321 | . PISTON | 9 | |
| 16 | 3081570 | . RETAINER | 1 | |
| 17 | 4397757 | . BUSHING | 1 | |
| 18 | 2049256 | . PLATE; SWASH | 1 | |
| 19 | 4396747 | . SPRING; COMPRES. | 6 | |
| 20 | 2042060 | . ROTOR | 1 | |
| 20 | 2052977 | . ROTOR | 1 | |
| 20 | 2051451 | . ROTOR | 1 | |
| 22 | 3081593 | . PLATE; FRICTION | 4 | |
| 23 | 3081592 | . PLATE | 4 | |
| 25 | 3081595 | . PISTON | 1 | |
| 26 | 4396775 | . O-RING | 1 | |
| 28 | 4396774 | . O-RING | 1 | |
| 29 | 3081594 | . SPRING; DISC | 1 | |
| 30 | 4420958 | . O-RING | 1 | |
| 31 | 4506415 | . O-RING | 2 | |
| 34 | 9234016 | . VALVE; BRAKE (FOR ASSEMBLY OF MACHINE) | 1 | |
| 34 | 9237801 | . VALVE; BRAKE (FOR TRANSPORTATION) | 1 | |
| 34 | 9247662 | . VALVE; BRAKE (FOR ASSEMBLY OF MACHINE) | 1 | |
| 34 | 9260003 | . VALVE; BRAKE (FOR TRANSPORTATION) | 1 | |
| 35 | 4396759 | . BRG.; NEEDLE | 1 | |
| 35 | 4631910 | . BRG.; NEEDLE | 1 | |
| 37 | 4610452 | . PIN; KNOCK | 2 | |
| 37 | 4630921 | . PIN; KNOCK | 2 | |
| 38 | 3101081 | . PLATE; VALVE | 1 | |
| 38 | 3106481 | . PLATE; VALVE | 1 | |
| 40 | M341850 | . BOLT; SOCKET | 9 |
