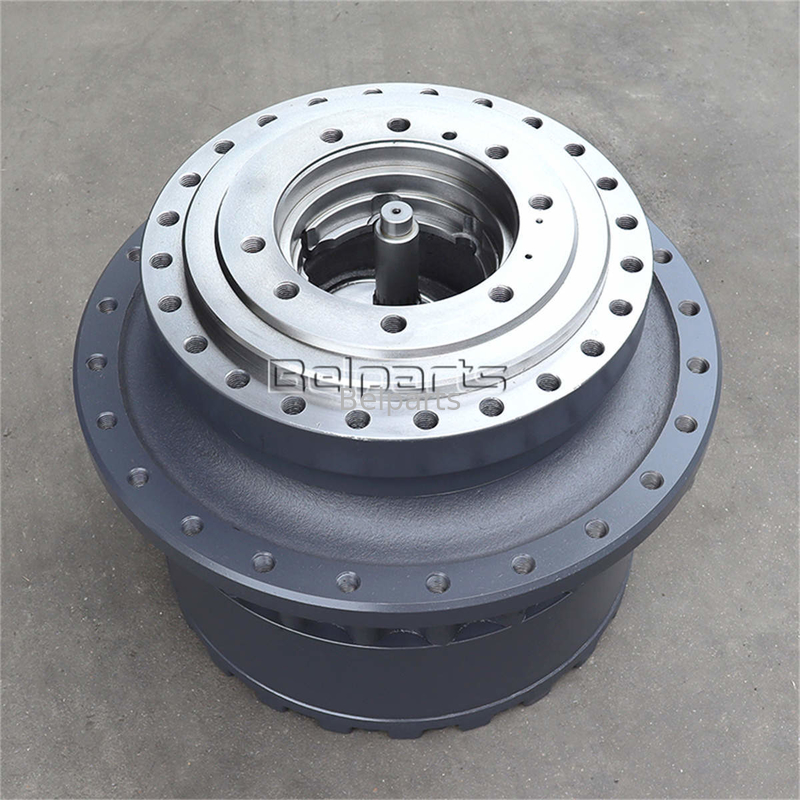

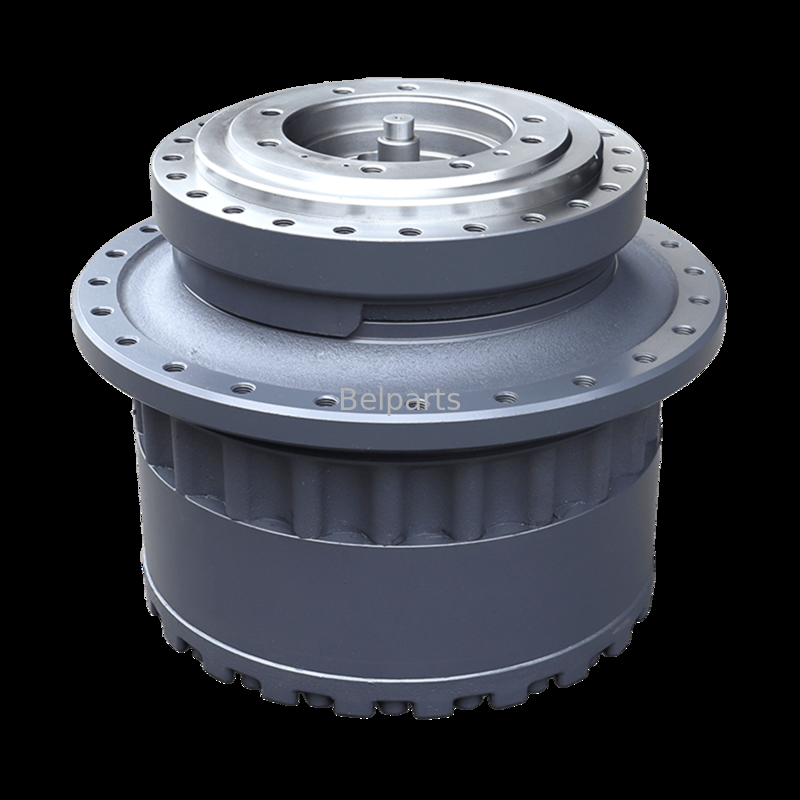

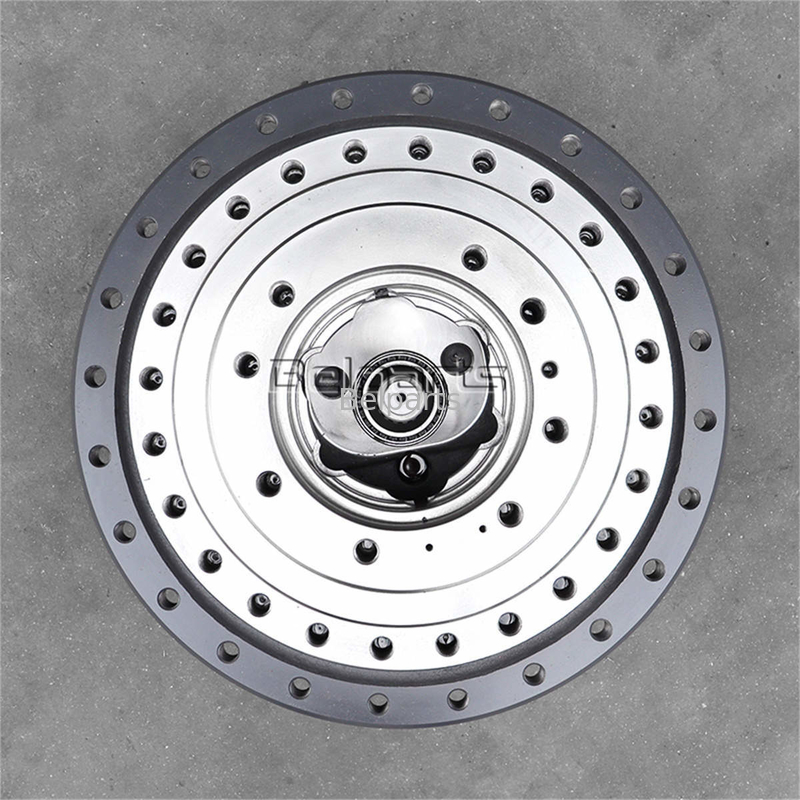

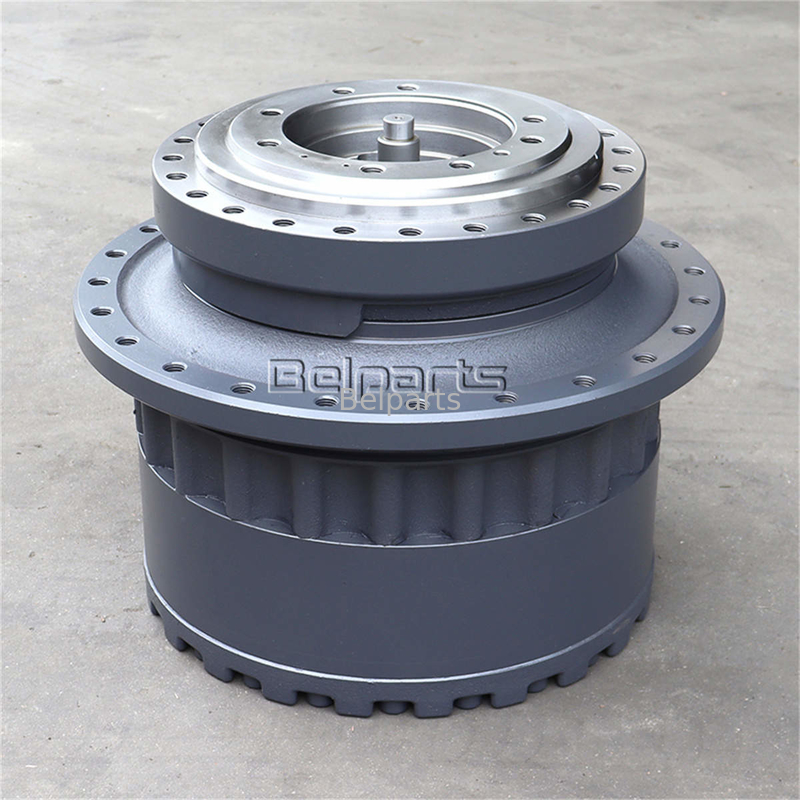

Komatsu PC300-8 207-27-71140 207-27-71130 Excavator Travel Gearbox Assembly
The travel gearbox is a critical component in an excavator’s undercarriage system, responsible for transmitting power from the hydraulic motor to the tracks or wheels, enabling precise movement and heavy-duty operation. Its reliability directly impacts the machine’s productivity in mining, construction, and earthmoving applications.
| Appliion | Excavator |
| Part name | Belparts travel gearbox |
| Material | Steel |
| Model | PC300-8 |
| Part number | 207-27-71140 207-27-71130 |
| Payment term | T/T, Paypal, Trade assurance, or as required |
| Delivery | 3 days after the payment received |
| Shipment | by sea, by air, by express, or as required |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 207-27-00440 | FINAL DRIVE ASS'Y | 2 | |
| 1 | (708-8H-00320) | MOTOR ASS'Y | 1 | |
| 2 | 207-27-00310 | FLOATING SEAL ASS'Y | 1 | |
| 2 | Ring | 2 | ||
| 3 | O-ring | 2 | ||
| 4 | 207-27-71311 | Hub | 1 | |
| 5 | 207-27-71330 | Bearing | 2 | |
| 6 | 207-27-52350 | O-ring | 1 | |
| 7 | 207-27-71370 | Lock | 1 | |
| 8 | 207-27-71360 | LOCK NUT | 1 | |
| 9 | 01010-81020 | BOLT,(FOR MONO LEVER STEERING) | 2 | |
| 10 | 207-27-71320 | Carrier | 1 | |
| 11 | 207-27-71140 | Gear | 4 | |
| 12 | 207-27-63210 | BEARING,2P | 4 | |
| 13 | 20Y-27-21250 | WASHER,THRUST | 8 | |
| 14 | 207-27-63230 | Pin | 4 | |
| 15 | 20Y-26-21330 | Pin | 4 | |
| 16 | 20Y-27-13310 | WASHER,THRUST | 1 | |
| 17 | 207-27-71130 | Gear | 1 | |
| 18 | 207-27-71152 | Ring gear | 1 | |
| 19 | 207-27-71250 | Washer | 1 | |
| 20 | 207-27-71161 | Carrier | 1 | |
| 21 | 207-27-71121 | GEAR,1P | 3 | |
| 22 | 207-27-61220 | BEARING,1P | 3 | |
| 23 | 20Y-27-21240 | WASHER,THRUST | 6 | |
| 24 | 207-27-61240 | Pin | 3 | |
| 25 | 20Y-27-21280 | Pin | 6 | |
| 26 | 207-27-71352 | Shaft | 1 | |
| 27 | 20Y-27-11250 | Spacer | 1 | |
| 28 | 20Y-27-22250 | BUTTON | 1 | |
| 29 | 207-27-71340 | Cover | 1 | |
| 30 | 01011-61880 | Bolt | 20 | |
| 31 | 01643-31845 | WASHER,(WITHOUT R.O.P.S.) | 20 | |
| 32 | 07049-01215 | PLUG,(FOR ROPS SWEEP) (WITHOUT CAB) | 2 | |
| 33 | 07044-12412 | PLUG,MAGNETIC | 3 | |
| 34 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 3 | |
| 35 | 207-27-71460 | SPROCKET | 1 | |
| 36 | 207-27-51311 | Bolt | 20 | |
| 37 | 01010-82075 | CAPSCREW | 42 | |
| 38 | 01643-32060 | FLAT WASHER - M20 (HARDENED) | 42 | |
| 39 | 207-30-71242 | Cover | 2 | |
| 40 | 01010-81640 | BOLT,(FOR SLAG HANDLING) (FOR USA) | 12 | |
| 41 | 01643-31645 | WASHER,(FOR TRAVEL MOTOR) (NOT SHOW) | 12 |
