Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy

원래 장소 중국에서 만들어집니다
브랜드 이름 Belparts
모델 번호 R305LC-7
최소 주문 수량 1개 부분
가격 Negotiable price
포장 세부 사항 우든 패킹
배달 시간 1-7days
지불 조건 페이팔과 알리바바 거래 보험인 전신환
공급 능력 1000개 부분

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
모델명 R305LC-7 브랜드 이름 Belparts
지불 전신환, 페이팔, 알리바바 거래 보험 판매 후 서비스 온라인
상태 새롭습니다 재료 강철
가격 Negotiable Price
메시지를 남겨주세요
제품 설명

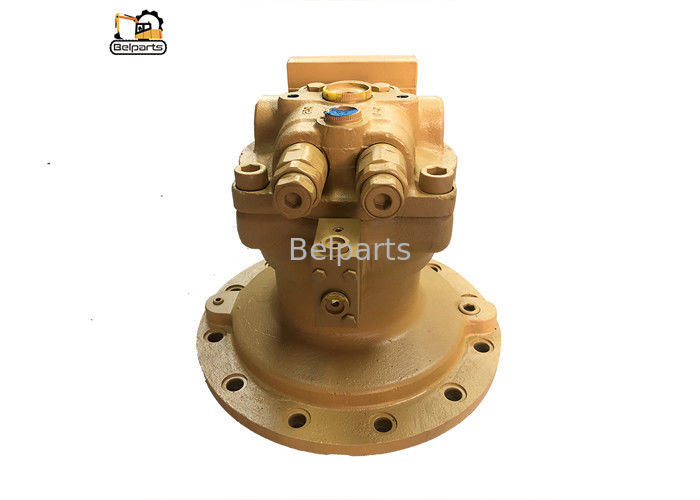

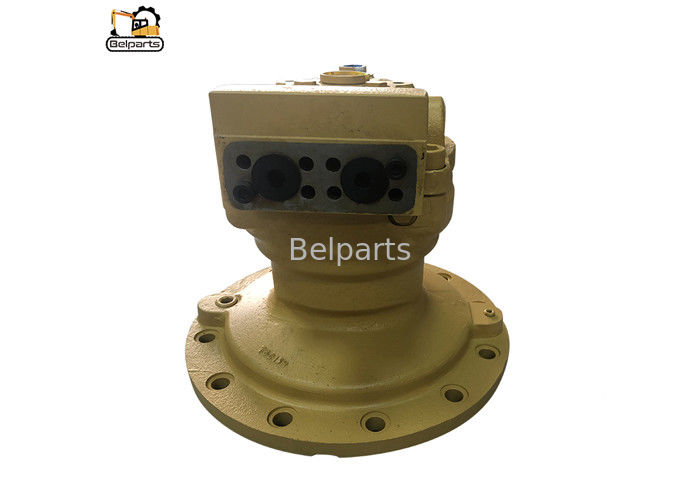

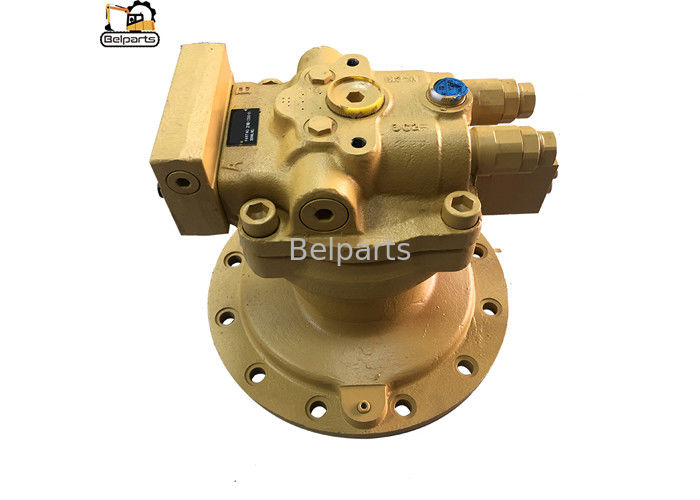

Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy



Appliion for

R305LC-7-7

Part name

31n8-12010

MOQ

1PC

After-sales service

Online

Discount

More quantity, more discount

Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy 0

Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy 1

Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy 2

Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy 3

List of spare parts


# Part No Part Name Qty. Price request
* @ FUEL INJECTION PIPE & NOZZLE 1
*-2 31N6-10150 REDUCTION GEAR
ILL.CHANGE
1
1 XKAQ-00002 CASING ASSY 1
2 XKAQ-00005 SHAFT-DRIVE 1
3 XKAQ-00018 SPACER 1
5 XKAQ-00026 BEARING-ROLLER 1
6 XKAQ-00032 SEAL-OIL 1
7 XKAQ-00029 BEARING-ROLLER 1
8 XKAQ-00076 PLATE-THRUST 1
9 XKAQ-00075 CARRIER-2 1
10 XKAQ-00074 RING-STOP 1
11 XKAQ-00073 GEAR-RING 1
12 XKAQ-00072 PIN-KNOCK 4
13 XKAQ-00014 GEAR-PINION 1
14 XKAQ-00071 WASHER-THRUST 6
15 XKAQ-00023 GEAR-PLANET 2 3
16 XKAQ-00070 PIN & BUSHING
INCL 23
3
17 XKAQ-00048 PIN-SPRING 6
18 XKAQ-00011 GEAR-SUN 2 1
19 XKAQ-00015 CARRIER-1 1
20 XKAQ-00057 PLATE-SIDE 1 3
21 XKAQ-00019 PIN 1 3
22 XKAQ-00030 CAGE-NEEDLE 3
N23 @ FUEL INJECTION PIPE & NOZZLE 3
24 XKAQ-00025 GEAR-PLANET 1 3
25 XKAQ-00044 WASHER-LOCK 2
26 XKAQ-00068 PLATE-SIDE 3 1
27 XKAQ-00067 GEAR-SUN 1 1
29 XKAQ-00049 PLUG-PRESSURE 1
30 XKAQ-00066 PLUG 2
31 XKAQ-00065 BOLT-SOCKET 2
32 XKAQ-00035 PIPE-GAUGE 1
33 XKAQ-00034 BAR-GAUGE 1
34 XKAQ-00031 PLATE-COVER 1
35 XKAQ-00064 BOLT-HEX 8
36 XKAQ-00043 PLATE-LOCK 1
37 XKAQ-00042 BOLT-HEX 4
38 XKAQ-00041 RING-STOP 3
39 XKAQ-00040 PLATE-SIDE 2 3
40 XKAQ-00143 AIR BREATHER ASSY 1
40-1 @ FUEL INJECTION PIPE & NOZZLE 1
40-2 HHI22-WP41 CAP-BREATHER 1
*-1 @ FUEL INJECTION PIPE & NOZZLE
SEE 4100
1



Company Information


Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy 4

Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy 5Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy 6

Factory


Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy 7







Packing & Delivery


Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy 8

Packaging Details:
1.According to orders, pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed with oil paper and plastic bags inside
6.Using wooden case package.
7.We support the custom-made demand for package
